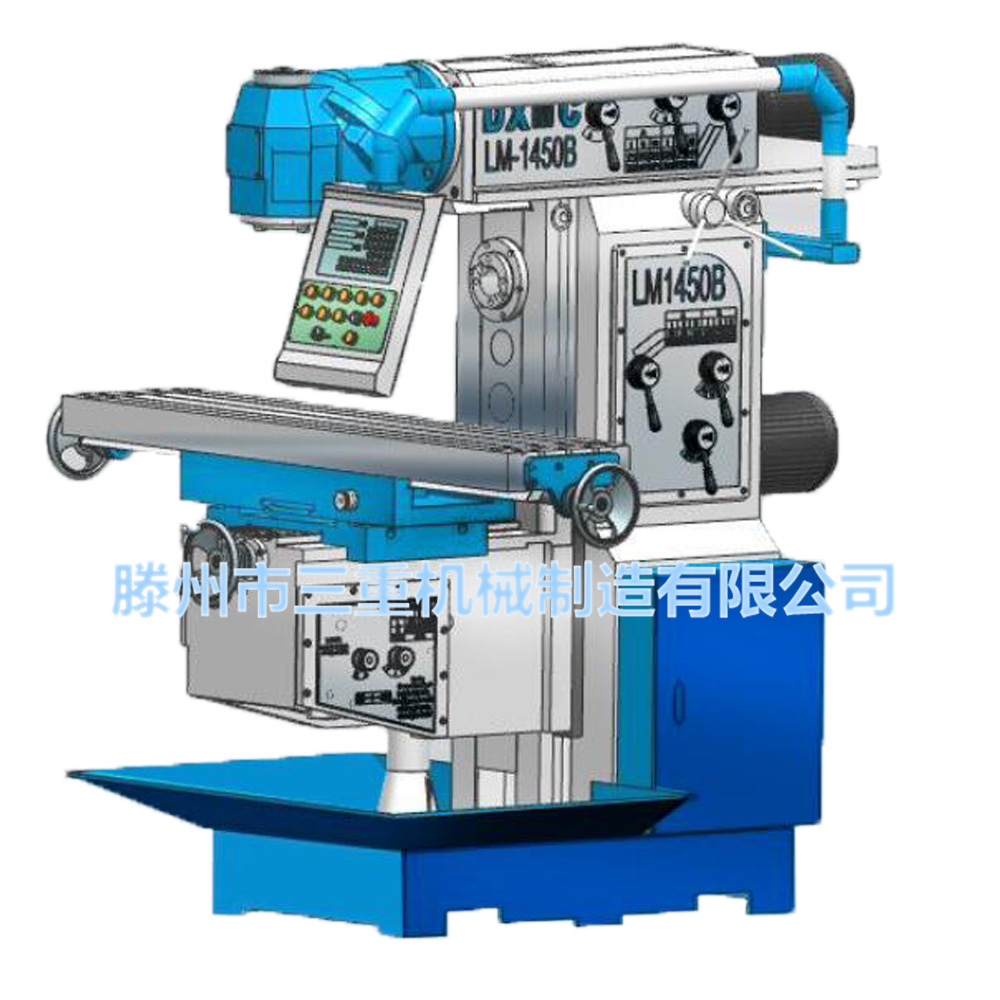

LM1450B universal milling machine is a milling machine developed from LM1450A universal milling machine, which is based on the feedback from market users and production experience.
Here is the technical comparison between LM1450A and LM1450B.

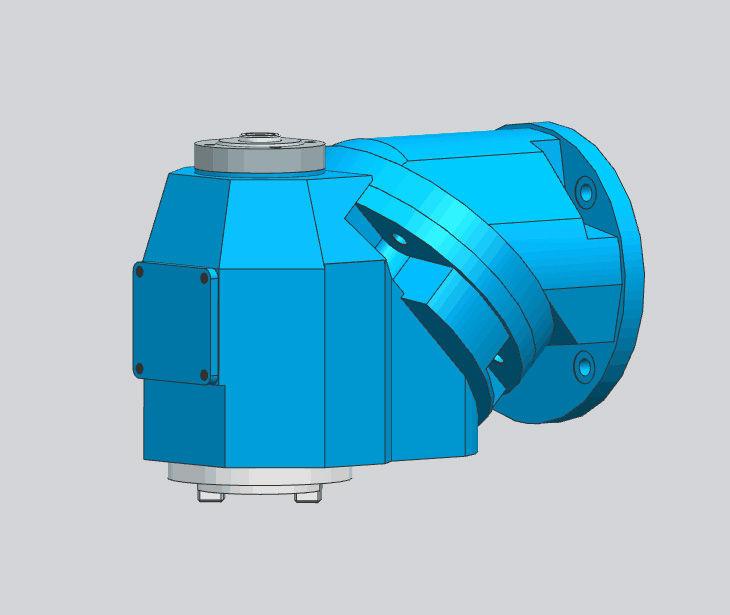

1. Vertical milling part: change the lubricating grease into lubricating oil. Solve the problem of insufficient lubrication and short life due to temperature rise.

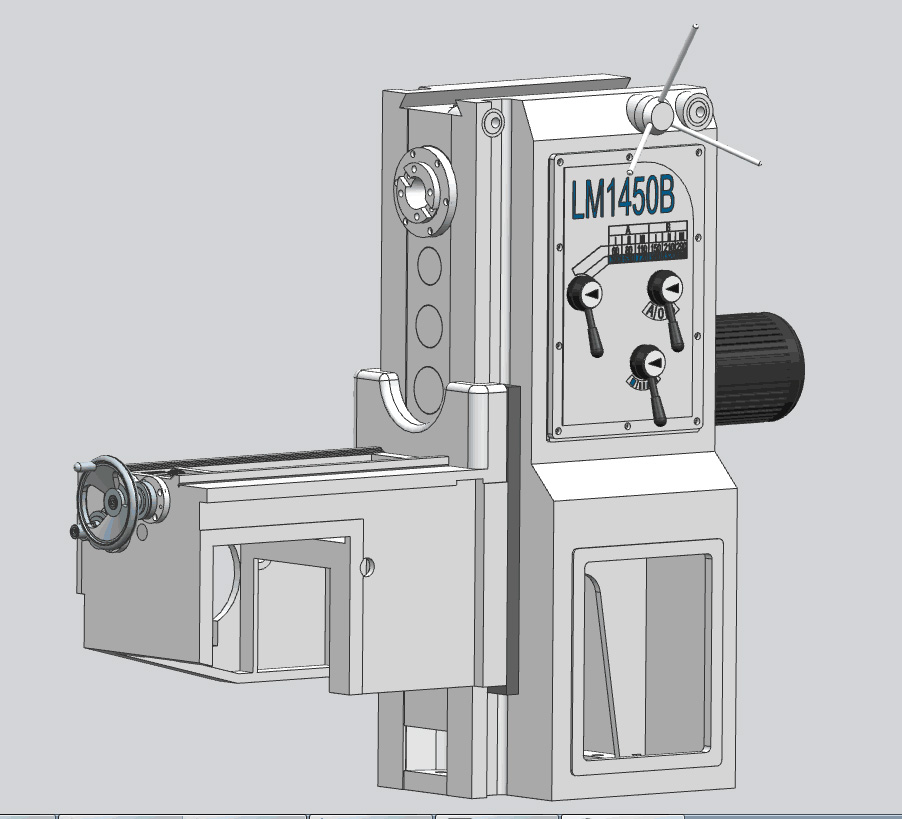

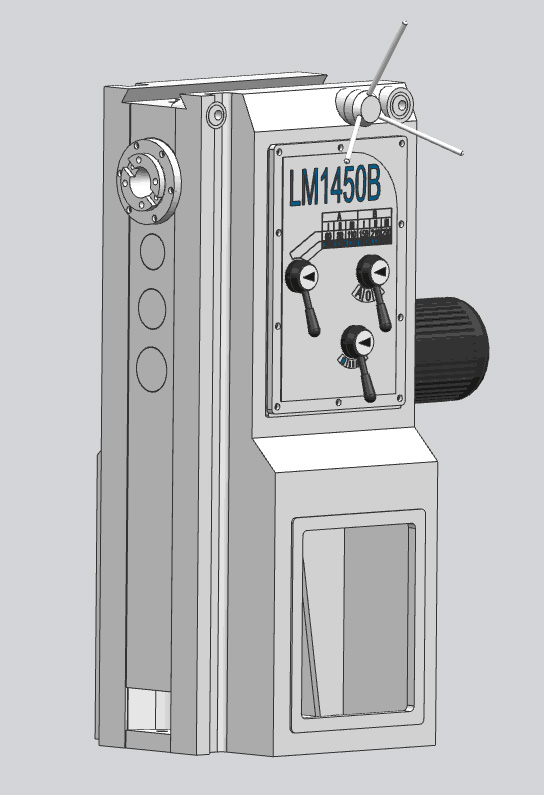

2. Bed body part: the ram seat, which is connected by screws, is changed into one-body type, greatly improving the stability and performance of the machine tool.

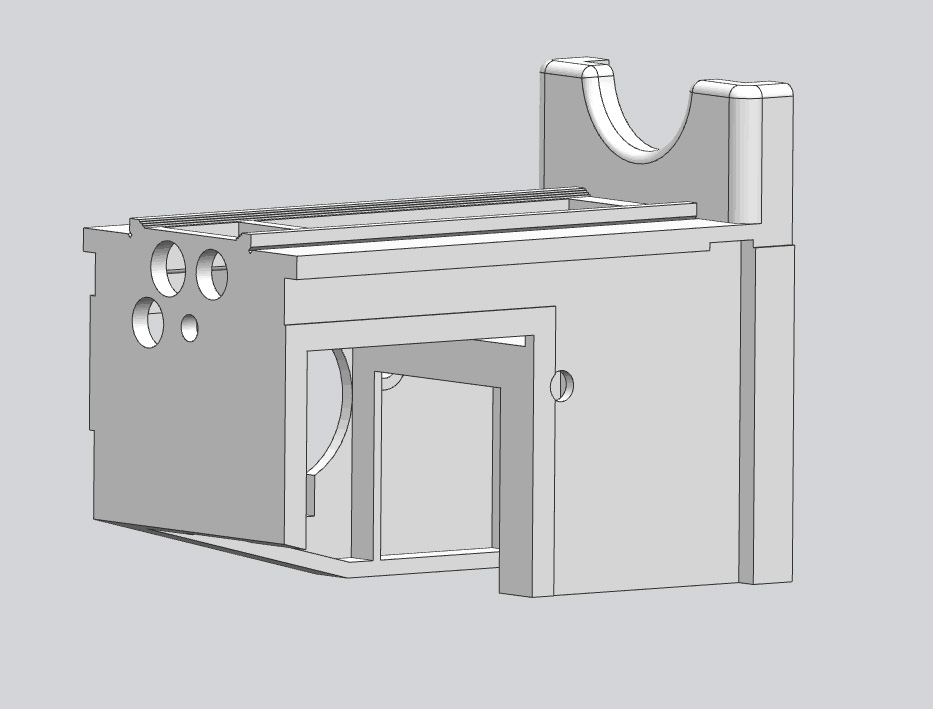

3. Lift table part: lift table is changed to the pull-up type, which improves the stability of the body, and makes the mill machine with higher precision and better processing performance.
4. Motor part: the motor of 4KW is changed to the motor of 5.5KW to improve the machining power of machine tool.
As an improved milling machine, LM1450B still has the advantages of LM1450A universal mill machine (click here to view LM1450A universal milling machine). As a professional milling machine supplier, our company provides perfect after-sales service and life-long maintenance service for machine tool products sold. If you still have questions, you are welcome to contact us by phone or by mail.
(If you do not know what model of the universal milling machine is appropriate please contact us customer service to give you answer!)
1. Three axes hardened
2. Y and Z axis rectangular guideway
3. Table Swivel 45 degree
4. According to customer requirements can be added ball screw
5. Centralized transmissionvalue stableeasy to operate
LM1450B | ||
---|---|---|
Table size | mm | 1630x360 |
Numbers、width&distance between T - slot | mm | 3x18x80 |
Max.longitudinal travel | mm | 1000 |
Max.cross travel | mm | 320 |
Max.vertical travel | mm | 405 |
Travel of arm | mm | 600 |
Distance from horizontal spindle to table | mm | 0-405 |
Distance from vertical spindle to table | mm | 145-550 |
Swivel angle of the vertical milling head | degree | 360 |
Max.rotary angle of table | degree | ±45 |
Distance from vertical spindle to column surface (Min) | mm | 270 |
Distabce from horizontal spindle to ram bottom | mm | 200 |
Level spindle taper | taper | ISO50 |
Level spindle taper | taper | ISO50 |
level spindle speed grade | steps | 12 |
level spindle speed range | rpm | 60-1800 |
Milling Head spindle speed garde | steps | 12 |
milling head spindle speed range | rpm | 60-1700 |
Grade of the work-table feeds | steps | 6 |
Range of feed speeds longitudinal,cross,vertical | mm/min | 30-630 |
Speed of rapid travels longitudinal,cross,vertical | mm/min | 2000 |
vertical spindle drive motor | kw | 4 |
Horizontal spindle drive motor | 5.5 | |
Lifting motor power | kw | 4 |
Feed motor | kw | 1.5 |
Coolant pump | w | 40 |
Net weight | kg | 2388 |
Overall dimensions(L×W×H) | mm | 1770x1830x1980 |
Packing size | mm | 1960x2080x2250 |
