6132 Universal Elevator is a powerful metal cutting machine. Machine hardness and feed speed can withstand heavy cutting. Spindle taper hole can be directly or through the annex to install a variety of cylindrical milling cutter, wafer cutting machine molding knife, end milling cutter and other tools for processing various parts of the flat slot slot die, automobile and motorcycle industry processing equipment.

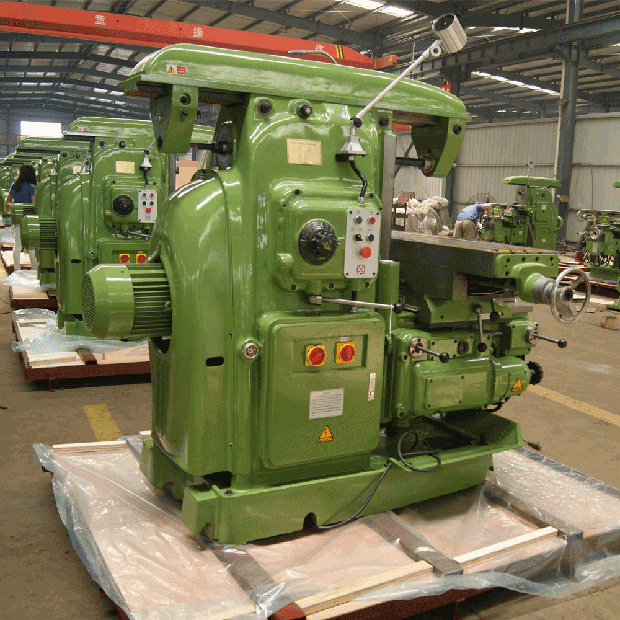

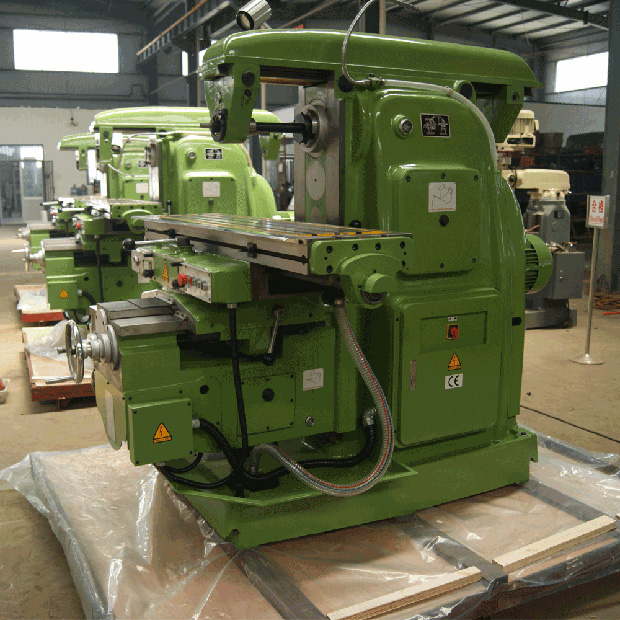

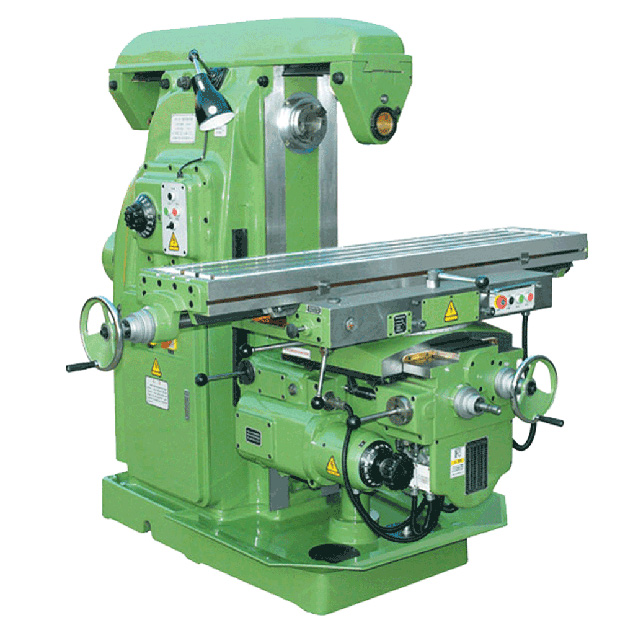

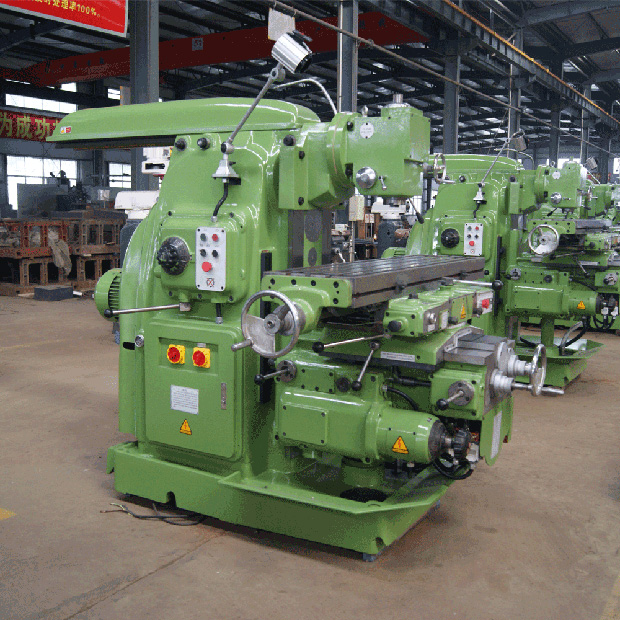

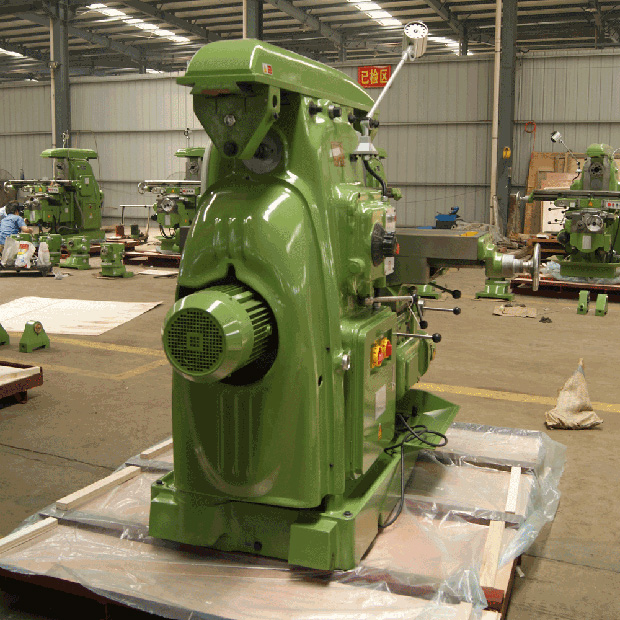

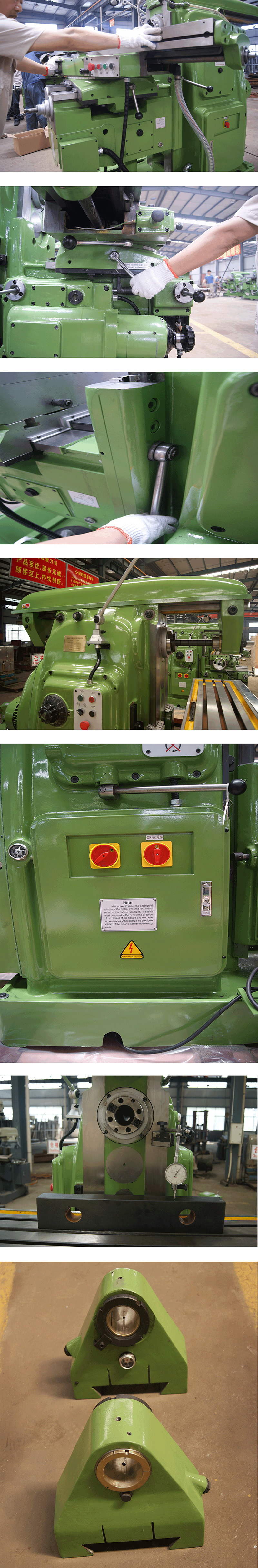

X6132 Knee type Milling Machine
Advantages:
Adopt rectangular guideway good stability
Tble and guideway are dealt by supersonic frequency quenching .
XYZ are driven by gear automatical feed.
The table can swivel +-45°.
(If you do not know what model of the universal milling machine is appropriate please contact us customer service to give you answer!)
Parameter | ||
---|---|---|
unit | X6132A | |
TABLE | ||
Table size | mm | 1320x320 |
T slot | no | 3 |
Size (Width) | mm | 18 |
Centre distance | mm | 70 |
Max. load of Table | kg | 500 |
Max.swivel of table | degree | ±45º |
machining range | ||
table Longitudinal travel(manual/auto) | mm | 700/680 |
table Cross travel (manual/auto) | mm | 255/244 |
table Vertical travel(manual/auto) | mm | 320/300 |
MAIN SPINDLE | ||
Spindle taper | ISO50 | |
spindle speed /step | rpm | 30-1500/18steps |
table center to column surface | mm | 215-470 |
horizontal spindle axis to table surface | mm | 30-350 |
Distance from spindle axis to ram | mm | 155 |
FEEDS | ||
Longitudinal/cross feed | mm / min | XY:23.5-1180 |
Vertical/step | mm/min | 8-394/18steps |
Longitudinal/cross rapid speed | mm / min | XY:2300 |
Rapid Traverse vertical | mm/min | 770 |
POWER | ||
main motor | kw | 7.5 |
feed motor | kw | 1.5 |
coolant motor | kw | 0.125 |
others | ||
package dimension | cm | 226x178x199 |
overall dimension | cm | 2294*1770*1904 |
N/WG/W | kg | 2650/3000 |
